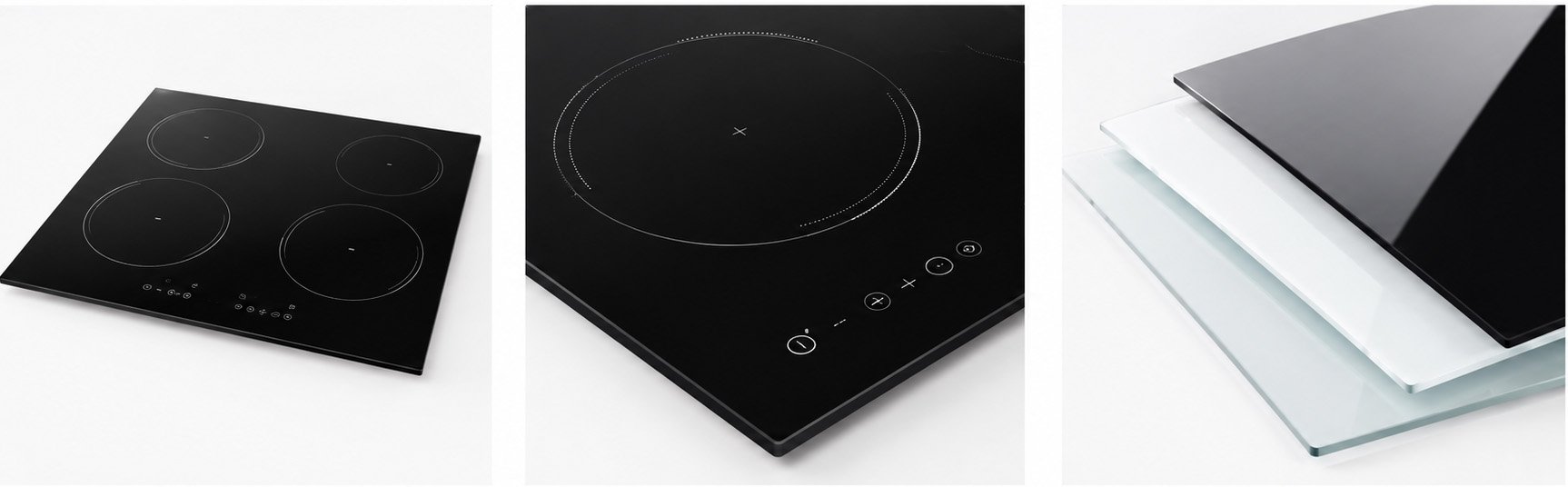

Black vitroceramic glass for induction cooktops, available in 4 mm and 6 mm thicknesses. Low thermal expansion, good thermal stability, and customized sizes, shapes, colors, and screen printing available.
Black vitroceramic glass is a glass-ceramic material designed for induction cooktops, electric ceramic hobs, and other cooking appliance panels. It combines very low thermal expansion with high thermal stability, good mechanical strength, and resistance to rapid temperature changes.
The material is also commonly described as ceramic glass or glass-ceramic in cooktop applications. Vatti Glass supplies black, white, clear, and other customized options in 4 mm and 6 mm thicknesses. Panels can be manufactured in standard or custom sizes and shapes according to application requirements and technical drawings.
Ceramic glass is used as the top surface of many induction and electric cooktops. During cooking, the panel is exposed to repeated heating and cooling, localized high temperatures, and temperature differences between the heated area and the cooler edge.
For these applications, the material needs to maintain its surface integrity and dimensional stability under thermal stress. Our vitroceramic glass is designed with very low thermal expansion and good resistance to thermal shock, making it suitable for cooktop panel applications.
Key properties include:
Very low coefficient of thermal expansion
High thermal stability
Resistance to thermal shock and temperature differences
Good mechanical properties
Good chemical corrosion resistance
High light transmission
Smooth polished surface
Support for screen printing
Custom sizes and shapes
Multiple color options
Vitroceramic glass is a glass-ceramic material produced through controlled crystallization. Its structure provides a combination of glass-like surface characteristics and high thermal stability.
In cooking appliances, this material is used where the panel needs to tolerate repeated heating and cooling while maintaining a smooth and stable surface.
Depending on the industry or application, the product may be referred to as vitroceramic glass, vitro ceramic glass, ceramic glass, or glass-ceramic.
For induction cooktops, the material provides a flat and smooth surface above the heating area and can be processed to meet different appliance designs.
Black ceramic glass is a common choice for cooktop panels because of its clean appearance and compatibility with functional and decorative printing.
The black surface can be combined with screen printing for:
Control markings
Heating-zone indicators
Temperature or power symbols
Brand logos
Decorative patterns
Vatti can also provide white, clear, and other color options according to the customer's product design and application requirements.
Very Low Thermal Expansion
Low thermal expansion is one of the key properties of glass-ceramic materials used for cooktop panels.
The coefficient of mean linear expansion is approximately:
α (20–700°C): (0 ± 0.5) × 10⁻⁷/K
The very low expansion helps reduce dimensional changes when the panel is exposed to repeated heating and cooling.
Thermal Shock Resistance
Cooktop panels can experience rapid temperature changes during operation. Our ceramic glass is tested for resistance to thermal shock under specified conditions.
In the stated thermal shock test, a hot panel at approximately 760°C is quenched with cold water at approximately 20°C. Under these specified test conditions, the panel shows no cracking caused by thermal stress.
This test result describes the performance under the stated test method and should not be interpreted as a recommended continuous operating temperature.
Resistance to Temperature Differences
During cooking, the heated zone of a cooktop panel can be significantly hotter than its surrounding areas.
The panel is tested for resistance to temperature differences between the heated zone and the cooler edge. Under the specified test conditions, the panel shows no cracking caused by thermal stress at a test temperature of up to approximately 760°C.
Actual operating conditions depend on the appliance design, heating method, installation, and heat distribution.
Bending Strength
The bending strength is approximately 36 MPa.
The bending strength test is carried out according to DIN EN 1288 Part 5 (R45).
Modulus of Elasticity
The modulus of elasticity is approximately:
93 × 10³ MPa
This property describes the material's response to mechanical deformation and is relevant to the structural performance of cooktop panels.
Impact Resistance
Ceramic glass panels may also be subjected to mechanical impact during installation and use.
Under the specified impact test, a steel ball with a diameter of 60 mm and a weight of approximately 188 g is dropped from a height of 180 mm and strikes the panel 10 times.
Under the stated test conditions, the tested panel shows no scratching or cracking.
Chemical Resistance
Vitroceramic glass provides good resistance to chemical corrosion, which is useful for cooktop surfaces that may come into contact with food residues, cleaning agents, and other substances during normal use.
Light Transmission
The material provides high light transmission and can be combined with screen printing to create functional and decorative surface designs.
| Property | Specification |
| Material | Vitroceramic Glass / Ceramic Glass |
| Color | Black, White, Clear, etc. |
| Thickness | 4 mm, 6 mm |
| Density | Approx. 2.56 g/cm³ |
| Modulus of Elasticity | Approx. 93 × 10³ MPa |
| Bending Strength | Approx. 36 MPa |
| Surface | Polished |
| Shape | Round, Square, Rectangle, etc. |
| Standard Sizes | 590 × 520 mm, 730 × 430 mm, 900 × 520 mm |
| Custom Sizes | Available |
| Thermal Expansion | (0 ± 0.5) × 10⁻⁷/K at 20–700°C |
| Thermal Shock Test | Up to approx. 760°C under specified test conditions |
| Screen Printing | Available |
| Application | Induction, Electric, Gas and Combination Cooktops |
| Installation | Built-in |
| Market | Household and Commercial |
Specifications may vary according to the selected material, processing requirements, and final appliance design. Please contact us with your technical requirements for confirmation.
Vatti Glass provides customized ceramic glass panels for different cooktop designs. Size, thickness, shape, color, and surface processing can be discussed according to the customer's requirements.
Custom Sizes
Standard sizes include:
590 × 520 mm
730 × 430 mm
900 × 520 mm
Other dimensions can be manufactured according to customer drawings or specifications.
Custom Shapes
Depending on the appliance design, panels can be processed into:
Round
Square
Rectangle
Other customized shapes
Surface Processing
Polished surfaces are available for cooktop applications.
Screen printing can also be applied for control markings, decorative patterns, heating-zone indicators, logos, and other customized designs.
The printing process can use standard inks and is available according to the applicable RoHS requirements.
Induction Cooktops
Ceramic glass panels are widely used as the top surface of induction cooktops. Their low thermal expansion and thermal stability help them withstand repeated heating and cooling during normal cooking cycles.
Electric Ceramic Hobs
The material is also suitable for electric ceramic hobs and other electric cooking appliances requiring a smooth, heat-resistant glass-ceramic surface.
Gas Cooktops
Ceramic glass can be used in selected gas cooktop designs when the panel construction and operating conditions are suitable for the material.
Gas and Electric Combination Cooktops
The panels can be designed for cooktops combining gas burners and electric heating zones.
Household Cooking Appliances
Black ceramic glass provides a smooth and modern surface for household cooktops and built-in kitchen appliances. Screen printing can be used to integrate functional markings and decorative elements into the panel design.
Commercial Cooking Equipment
The material can also be supplied for commercial cooking equipment where thermal stability, mechanical performance, and customized dimensions are required.
Ceramic glass panels can be configured for different burner arrangements, including:
1 electric burner
2 electric burners
3 electric burners
Multiple electric burners
1 gas burner
2 gas burners
3 gas burners
Multiple gas burners
Gas and electric combination configurations
The final panel dimensions, openings, printing pattern, and configuration can be evaluated according to the appliance design.
Qingdao Vatti Glass supplies ceramic glass and other specialty glass products for industrial and commercial applications.
For ceramic glass cooktop projects, we can support customers with:
4 mm and 6 mm thickness options
Standard and custom panel sizes
Different shapes and colors
Polished surfaces
Screen printing
Customized production
OEM supply
Sample and small-order support
Export packaging and international transportation
Our team can review technical drawings, dimensions, quantities, and application requirements before production to help confirm a suitable product specification.
Samples and Small Orders
Samples and small orders can be shipped by international express services such as DHL, TNT, FedEx, EMS, and UPS.
The typical delivery time is approximately 7–10 working days after payment, depending on the order and shipping arrangement.
Main Orders
For larger orders, transportation can be arranged by sea or railway according to the destination, order volume, and customer requirements.
The glass panels are packed for international transportation to help protect them during handling and shipment.
What is ceramic glass for induction cooktops?
Ceramic glass for induction cooktops is a glass-ceramic material used as the top panel of induction cooking appliances. It is designed to provide thermal stability, very low thermal expansion, and resistance to temperature changes during cooking.
Is vitroceramic glass the same as ceramic glass?
Vitroceramic glass and ceramic glass are commonly used terms for glass-ceramic materials in cooktop applications. However, specific composition and performance can vary between different products and manufacturers.
Is black ceramic glass suitable for induction cooktops?
Yes. Black ceramic glass can be used for induction cooktop panels when the material properties and panel design meet the requirements of the appliance.
What thicknesses are available for induction cooktop glass?
Vatti currently supplies 4 mm and 6 mm ceramic glass panels. Other specifications can be discussed according to the application and customer requirements.
Can ceramic glass cooktop panels be customized?
Yes. Vatti can provide customized sizes, shapes, colors, and surface processing according to customer drawings and technical requirements.
Can screen printing be applied to ceramic glass?
Yes. Screen printing can be used for control markings, heating-zone indicators, logos, decorative patterns, and other customized designs.
Can you provide samples before mass production?
Yes. Samples and small orders can be arranged for evaluation before larger production orders, subject to the specific product requirements.
What temperature can the ceramic glass withstand?
Under the stated thermal testing conditions, the panel demonstrates resistance to thermal stress at approximately 760°C. This is a test temperature rather than a recommended continuous operating temperature. Actual service conditions depend on the appliance structure, heating method, and application.
Looking for ceramic glass for induction cooktops, black ceramic glass, or vitroceramic glass panels?
Send us your required size, thickness, shape, color, quantity, technical drawing, or application details. Our team can review your requirements and provide a suitable specification and quotation for your cooktop glass project.
