Black Ceramic Glass

Black ceramic glass is a heat-resistant glass-ceramic panel designed for high-temperature applications, particularly induction cooktops and other cooking surfaces. Its extremely low thermal expansion, excellent thermal stability, and strong thermal shock resistance help the panel withstand repeated heating and rapid temperature changes.

The material can withstand continuous exposure to temperatures of up to 600°C for extended periods without rupture. It also provides reliable performance under sudden temperature changes of up to approximately 750°C, making it suitable for demanding cooktop applications.

Key Features of Black Ceramic Glass

· Extremely low thermal expansion for excellent dimensional stability during heating and cooling.

· Excellent thermal stability and durability for repeated high-temperature use.

· High thermal shock resistance helps reduce the risk of cracking caused by sudden temperature changes.

· Low horizontal heat conduction helps keep areas around the cooking zone relatively cooler.

· Good mechanical properties for reliable performance in cooktop applications.

· Good chemical corrosion resistance for everyday cooking environments.

· Customizable sizes, shapes, thicknesses, and s

urface processing to meet different cooktop designs.

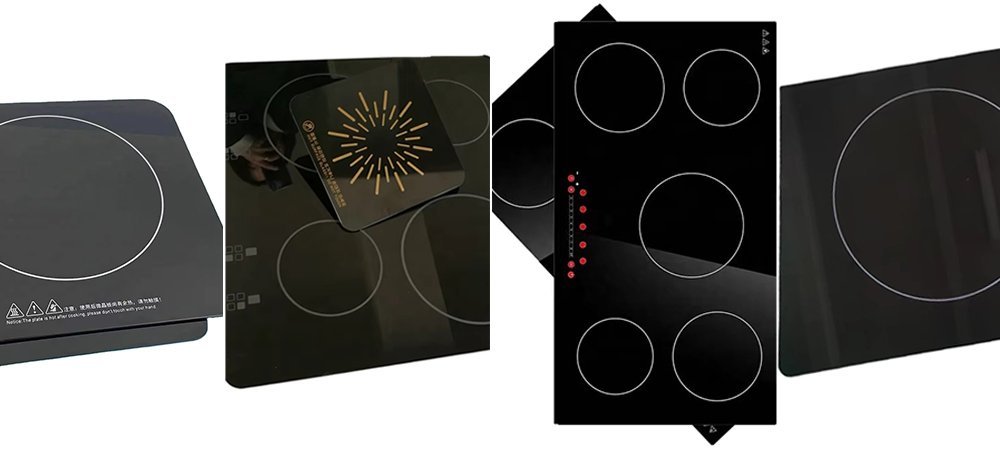

Ceramic Glass for Induction Cooktops

Ceramic glass is widely used as the cooking surface of induction cooktops because it combines a smooth appearance with excellent resistance to heat and thermal stress. Our ceramic glass for induction cooktops is designed to withstand repeated heating and cooling while maintaining dimensional stability.

The extremely low coefficient of thermal expansion helps reduce stress caused by temperature changes. The material also provides high thermal shock resistance and good mechanical strength, making it suitable for built-in induction cooktops and other high-temperature cooking surfaces.

Black ceramic glass can provide a clean, modern appearance while supporting different cooktop designs and configurations. Different sizes, shapes, thicknesses, and processing options can be customized according to application requirements.

Product Specifications

Thermal and Mechanical Properties

Bending Strength

The bending strength is approximately 36 MPa. Testing is conducted according to DIN EN 1288 Part 5 (R45).

Thermal Expansion

The coefficient of mean linear expansion is approximately:

α (20–700°C): (0 ± 0.5) × 10⁻⁷ /K

The extremely low thermal expansion helps improve dimensional stability when the ceramic glass is exposed to repeated heating and cooling.

Resistance to Temperature Differences

The panel is designed to resist temperature differences between the heated cooking zone and the cooler panel edge. No cracking due to thermal stress is observed under the specified test conditions, with a maximum test temperature of approximately 760°C.

Thermal Shock Resistance

The ceramic glass panel is tested for thermal shock by quenching a hot panel at approximately 760°C with cold water at approximately 20°C. Under the specified test conditions, no cracking caused by thermal stress is observed.

Impact Resistance

A steel ball with a diameter of 60 mm and a weight of approximately 188 g is dropped from a height of 180 mm onto the panel 10 times. Under the specified test conditions, the panel shows no scratching or cracking.

Customization and Processing

VATTI GLASS provides customization options for different cooktop designs and production requirements.

Available options include:

· Custom thickness

· Custom size

· Custom shape

· Rough polishing

· Screen printing

· Different colors and surface designs

Standard thicknesses include 4 mm and 6 mm, while other thicknesses can be discussed according to application and production requirements.

The glass can be supplied in round, square, rectangular, and other customized shapes.

Applications of Ceramic Glass for Induction Cooktops

Our ceramic glass is suitable for different cooking surface configurations and high-temperature applications, including:

· Induction cooktops

· Electric cooktops

· Gas cooktops

· Gas + electric cooktops

· Built-in cooktops

· Household cooking appliances

· Commercial cooking equipment

The combination of thermal stability, low thermal expansion, thermal shock resistance, and customizable design makes ceramic glass suitable for cooktop panels that are exposed to repeated heating and cooling.

Product Advantages

Black ceramic glass combines functional performance with a modern appearance.

Its key advantages include:

· Excellent heat resistance

· High thermal stability

· Extremely low thermal expansion

· Good thermal shock resistance

· Good mechanical properties

· Chemical corrosion resistance

· Customizable dimensions and shapes

· Suitable for different cooktop configurations

· Available for household and commercial applications

Packaging and Delivery

For samples and small orders, products can be shipped by DHL, TNT, FedEx, EMS, UPS, or other express services.

Sample and small-order delivery generally takes 7–10 working days after payment is received.

For main orders, products can be shipped by sea or railway, depending on order requirements and destination.

Glass products can be protected with appropriate packaging materials and export-standard wooden crates to help ensure safe transportation.

About VATTI GLASS

Qingdao Vatti Glass Co., Ltd. is a professional manufacturer and supplier of ceramic glass and specialty glass products. We provide customized glass solutions for different industrial and appliance applications.

With independent import and export rights, strict quality management, and professional production capabilities, VATTI GLASS supplies glass products to customers in different international markets.

We provide customized solutions based on product requirements, including thickness, size, shape, processing, and application specifications.
