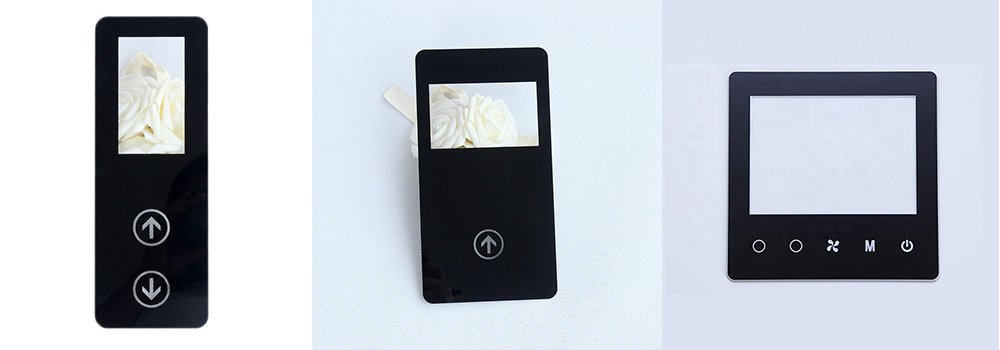

Touch Switch Glass Panel is a precision-processed glass front panel designed for control interfaces and smart electronic devices. The glass provides a clean, durable surface over the touch area while allowing the printed design, symbols, borders, and control markings to become part of the finished product appearance.
VATTI manufactures Touch Switch Glass Panels from tempered float glass with customized thickness, dimensions, colors, printing patterns, holes, and edge finishes. Designed for touch-sensitive switches and electronic control interfaces, the glass combines a smooth front surface with precisely positioned graphics that define the visible control area.
The glass panel must match both the visible interface and the underlying touch-control structure. Dimensions, active-area position, printed borders, holes, and other processed features need to be coordinated with the electronic components during the design stage.
VATTI can manufacture the glass according to technical drawings, CAD files, artwork, samples, or specified dimensions. This allows the glass geometry and printed layout to follow the actual switch configuration rather than relying on a fixed panel format.
Key customization options include:
· 1–6 mm and other customized thicknesses
· Customized panel length and width

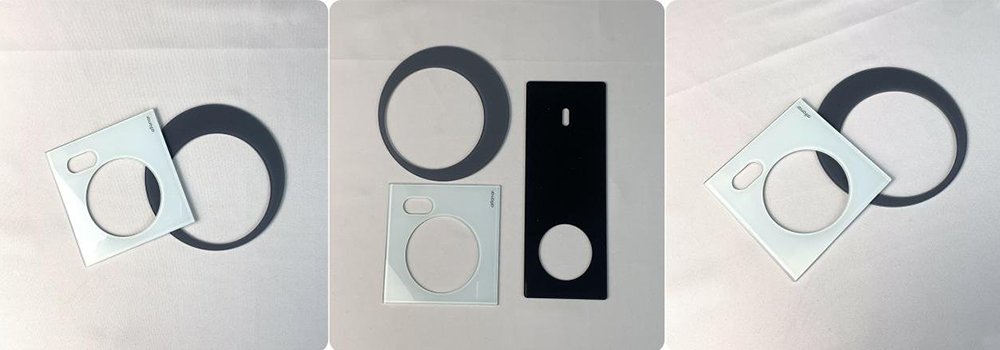

· Round, square, rectangular, and irregular shapes
· Touch-area and graphic-area positioning
· Drilled holes from approximately 3 mm to 100 mm
· Customized screen-printed borders, symbols, and patterns
· Edge cutting, grinding, polishing, and step-edge processing
· Customized colors based on RAL or Pantone references
For touch switch manufacturers, accurate positioning of the printed elements and processed features is particularly important because the finished glass must align with the touch interface and mechanical assembly.
Silk screen printing gives the touch switch glass panel its functional graphic layer as well as its visual identity. Ceramic or suitable glass-printing inks are applied through a prepared mesh screen to transfer borders, icons, lettering, control markings, and decorative patterns onto the glass surface.
The process begins with artwork preparation and screen setup. The customer’s graphic file is converted into a suitable printing layout, with the position, dimensions, colors, and printing areas defined according to the glass drawing. A dedicated screen is then prepared for each required graphic layer or color.
Before printing, the glass is cut, edge-processed, cleaned, and dried to provide a suitable surface for ink application. During screen printing, the ink is transferred through the selected mesh onto the glass in a controlled printing pass. For multicolor designs, different colors are printed in sequence, with the printing position controlled to maintain accurate alignment between graphic elements.
After printing, the ink is dried or cured according to the selected ink system. When ceramic ink is specified for a glass panel that will be tempered, the printing and tempering process can be coordinated so that the printed layer develops the required adhesion and durability during the heat-treatment process. The exact temperature and processing conditions depend on the glass, ink system, thickness, and design.
Printing quality is controlled through factors such as screen mesh, ink viscosity, printing pressure, alignment, drying conditions, and surface cleanliness. These parameters help maintain consistent border widths, symbol definition, color appearance, and graphic positioning across production batches.
Typical Screen-Printed Elements
· Touch switch symbols
· Function icons
· On/off markings
· Control indicators
· Black or colored borders
· Brand logos
· Decorative patterns
· Multicolor graphic layouts
For touch switch panels, particular attention is given to the relationship between the printed graphics and active touch area. Printed borders, symbols, and opaque areas can be positioned to define the visible interface while leaving the required touch or display areas unobstructed.
The final artwork should define the required graphic dimensions, positions, colors, layer sequence, and applicable tolerances. This allows the printing layout to be matched accurately with the glass geometry and the underlying touch-control structure.
A glass front panel creates a continuous interface across the touch-control area while providing a smooth surface suitable for repeated user contact.
Tempered glass is used when increased mechanical strength and thermal resistance are required. During thermal tempering, the glass is heated and rapidly cooled to create a compressive stress layer at the surface. This increases its resistance to mechanical and thermal stresses compared with annealed glass of the same composition and thickness.
For touch switch applications, the glass can combine several functions within one component:
Protection + Touch Interface + Graphic Layer + Decorative Surface
The surface can be supplied with screen printing, while additional treatments such as sandblasting or acid etching can be incorporated when the design calls for a textured or matte visual effect. This integrated approach allows the glass to serve as both the visible interface and a functional component of the finished switch assembly.
Touch switch glass panels are suitable for electronic products where touch controls are integrated into a flat front interface.
Typical applications include:

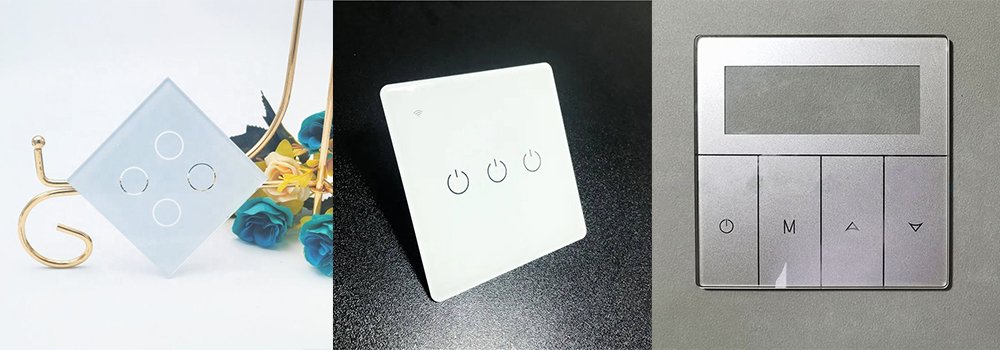

· Smart home control panels
· Wall-mounted touch switches
· Lighting control interfaces
· Home automation panels
· Smart appliance control panels
· Bathroom control interfaces
· Furniture-integrated touch controls
The glass specification should be selected according to the device structure, touch technology, installation method, operating environment, and required appearance. For applications with integrated displays or sensors, the printed border can also be designed to leave designated areas unobstructed for the required optical or electronic components.
A touch switch glass panel requires more than basic cutting. Glass dimensions, holes, edges, graphics, surface treatment, and tempering must work together with the final switch structure. VATTI coordinates these processes according to the approved technical drawing and artwork.
1. Design & Specification Review
Customers can provide a CAD drawing, technical drawing, artwork, physical sample, or basic product requirements. VATTI reviews the panel dimensions, shape, thickness, touch area, graphic layout, hole positions, edge requirements, and other critical specifications before production.
2. Precision Cutting
Qualified float glass is cut to the required dimensions and geometry. Rectangular, square, round, and customized irregular shapes can be processed according to the approved drawing.
3. Edge & Hole Processing
The cut glass is further processed for assembly requirements. Available edge treatments include cut, ground, polished, and step-edge finishes. Drilled holes can be produced for mounting, sensors, buttons, wiring access, or other mechanical features according to specified diameters and positions.
4. Surface Preparation
Before printing, the glass is cleaned and dried to provide a suitable surface for graphic application. Proper surface preparation helps reduce contamination that could affect printing consistency and ink adhesion.
5. Screen Preparation & Graphic Printing
The approved artwork is converted into the required screen-printing layout. Screens are prepared according to the graphic design, while printing parameters are adjusted for the selected glass, ink, color, and pattern.
Graphics are then printed onto the prepared glass. For multicolor designs, colors are applied in sequence with attention to graphic alignment, border dimensions, symbol definition, and overall appearance.
6. Drying, Curing & Tempering
The printed glass undergoes the appropriate drying or curing process according to the selected ink system. Where tempered glass is specified, the printing and thermal tempering process is coordinated according to the glass, ink, thickness, and application requirements.
7. Final Quality Inspection
Finished panels are inspected according to the approved specifications. Typical inspection points include:
· Glass dimensions and shape
· Hole diameter and position
· Edge condition
· Printing position and appearance
· Color and graphic definition
· Surface condition
Inspection criteria can be established according to the customer's drawings, samples, specifications, and quality requirements.
What thicknesses are available for touch switch glass?
Common thicknesses include 1 mm, 2 mm, 3 mm, 4 mm, 5 mm, and 6 mm, with other thicknesses available according to the application and manufacturing requirements.
Can you print a black border around the touch area?
Yes. Black borders are a common screen-printing configuration for touch switch glass. The border dimensions and position can be defined according to the customer’s artwork and the underlying touch-control structure.
Can multiple colors be printed on one glass panel?
Yes. Multicolor screen printing can be produced according to the approved artwork. Color references can be specified using RAL, Pantone, or other agreed color standards.
How are the glass panels protected during shipment?
Panels can be protected with film and separated using paper or other suitable protective materials. Export orders can be packed in strong wooden crates with steel banding to reduce the risk of damage during handling and transportation.
