Tempered Touch Glass Panel combines physical tempering with precision glass processing and durable ceramic-frit screen printing. It supports defined thicknesses, edges, corners, openings, and surface treatments for reliable touch interface integration.

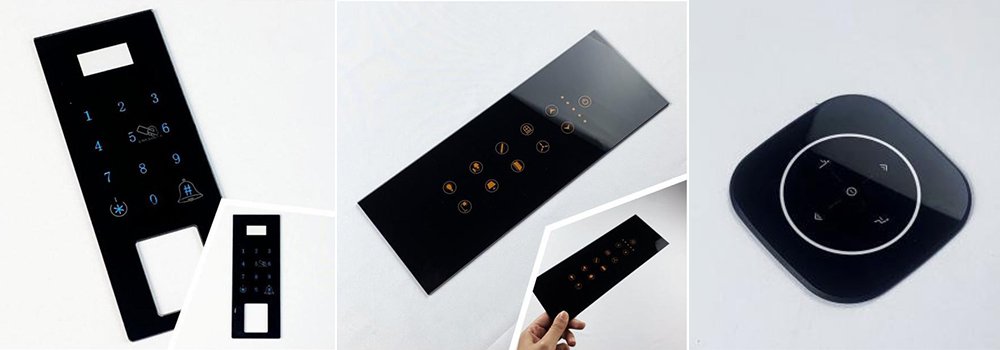

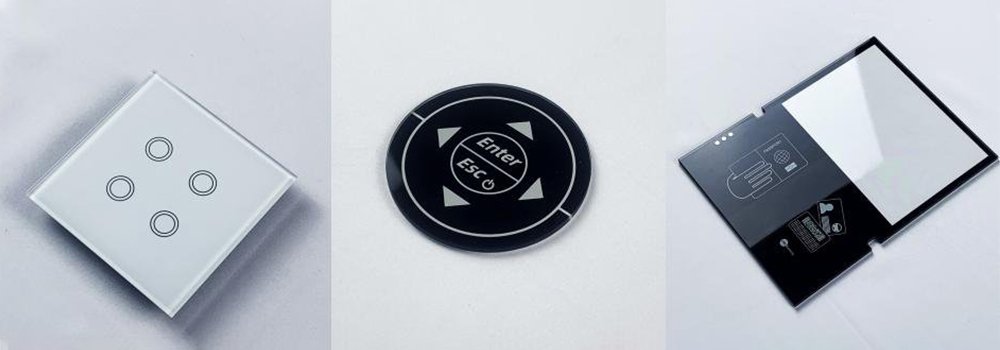

A touch interface begins with a glass surface that must support both optical clarity and reliable interaction. VATTI Tempered Touch Glass Panels are precision-processed glass covers designed for touchscreens, HMI systems, control panels, electronic devices, and appliance interfaces.
The panel can be manufactured from clear, ultra-clear, or other suitable glass substrates and processed to match the dimensions and functional requirements of the finished device. Physical tempering improves mechanical strength and impact resistance, while the glass surface can be further configured with printing, holes, edge processing, and functional coatings according to the application.
From a simple touch panel to a fully printed and machined front cover, each glass specification is developed around the device rather than treated as a standard sheet.
The glass front panel needs to fit more than the visible screen area. Its overall dimensions, corner geometry, edge finish, openings, printed areas, and surface treatment all affect final assembly.
VATTI processes touch glass panels according to your technical drawing, CAD file, artwork, sample, or dimensional requirements. Typical configurations include:
· Custom length and width for different device housings
· Square, rectangular, or specially shaped panels
· Rounded corners, C-shaped corners, and other specified geometries
· Flat-polished, round-polished, or beveled edges

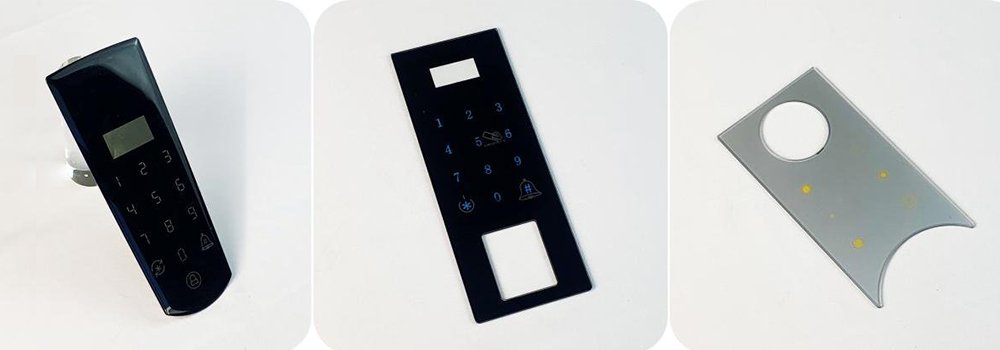

· Drilled holes and cut-outs for buttons, sensors, indicators, or mounting components
· CNC-machined internal edges for higher-precision openings
· Screen-printed borders, symbols, graphics, or functional markings
· AR, AG, AF, ITO, or other suitable surface treatments
This allows the glass to be specified around the actual interface and installation structure, reducing the need to adapt the device around a fixed glass format.
Physical tempering gives the touch panel enhanced mechanical strength, impact resistance, and thermal resistance compared with annealed glass of the same composition and thickness.
During the tempering process, the glass is heated and rapidly cooled to create a compressive stress layer at the surface. When properly specified and processed, this structure helps the panel withstand the mechanical demands encountered during handling, installation, and everyday device operation.
Tempered glass also provides a safety characteristic: when fully tempered glass breaks, it generally fractures into small granular pieces rather than large sharp shards.
For touch devices, glass thickness and tempering parameters need to be selected together with the panel dimensions, hole layout, edge configuration, and application environment. Tempered glass cannot be cut or drilled after tempering, so all dimensional and machining requirements must be confirmed before the tempering stage.
A printed border can define the active touch area while concealing internal components, adhesives, wiring, or structural elements around the display.
VATTI uses ceramic-frit screen printing for durable graphics and borders. The ceramic ink is applied to the glass through a controlled screen-printing process and subsequently fused during tempering. This creates a permanent printed layer integrated with the glass surface.
Available printing configurations include:
· Black or customized border designs
· Single-color or multi-color graphics
· Logos, icons, symbols, and identification markings
· Decorative patterns and functional printed areas
· Custom artwork supplied by the customer
· Up to 5 colors for suitable designs
· Pantone or RAL color references for less-common colors
Because the printing and tempering stages are coordinated, the finished panel can combine decorative appearance with durable printed graphics for long-term device use.
Tempered Touch Glass Panels can be configured for different electronic and equipment interfaces, including:
Touchscreens & HMI
· HMI control panels
· Industrial control interfaces
· Touchscreen equipment
· Access control systems
· Monitoring and operating panels
Electronic Devices
· Display cover glass
· Electronic product panels
· Control interfaces
· Instrument panels
· Switch panels
Home & Commercial Appliances
· Kitchen appliances
· Refrigerators
· Ovens
· Range hoods
· Air conditioners
· Washing machines
· Other smart appliances
The glass configuration can be adapted according to the device structure, touch area, mounting method, environmental conditions, and appearance requirements rather than relying on one fixed panel design.
VATTI supports the complete glass-processing workflow from initial specification to finished touch panel.
1. Specification Review
Provide a technical drawing, CAD file, artwork, sample, or basic dimensions. Our team reviews the required thickness, size, edge treatment, holes, printing, coating, and tempering requirements.
2. Glass Cutting & Shaping
The glass is cut to the specified dimensions and shaped according to the required geometry.
3. Edge & Hole Processing
Edges, holes, cut-outs, and internal openings are processed using suitable grinding, drilling, waterjet, or CNC techniques.
4. Screen Printing
Ceramic-frit graphics, borders, logos, or other specified patterns are printed according to the approved artwork.
5. Surface Treatment
Where required, functional coatings or surface treatments such as AR, AG, AF, ITO, or acid etching can be incorporated according to the application.
6. Physical Tempering
The processed glass undergoes physical tempering to achieve the specified mechanical performance.
7. Final Inspection & Packing
Dimensions, appearance, printing, processing quality, and other agreed specifications are inspected before the panels are securely packed for shipment.
Specification | Available Options |
Glass Material | Clear glass, ultra-clear glass, and other suitable glass substrates |
Thickness | 0.5–6 mm and other thicknesses subject to application requirements |
Panel Size | Custom size; typical range from 50 × 50 mm up to 1200 × 2400 mm |
Edge | Flat polished, round polished, beveled, and other specified finishes |
Corner | Right angle, rounded corner, C-shaped corner, and custom geometry |
Holes & Cut-outs | Drilled holes, waterjet openings, CNC-machined internal edges |
Screen Printing | Custom graphics, borders, logos, symbols, and patterns |
Printing Colors | Single-color or multi-color; up to 5 colors for suitable designs |
Color Reference | Pantone or RAL color codes available for specified colors |
Tempering | Physical tempered glass |
Coating / Surface Treatment | AR, AG, AF, ITO, acid etching, subject to glass and application requirements |
Applications | Touchscreens, HMI, LCD/OLED displays, appliances, heating equipment, access control, instruments, and electronic devices |
Minimum Sample Size | 50 × 50 mm |
Bulk MOQ | 200 pcs |
Lead Time | Typically 10–12 days depending on processing requirements |
OEM Service | OEM orders supported |
VATTI is committed to maintaining consistent manufacturing quality and meeting the requirements of international markets. Our glass manufacturing and quality management are supported by AS/NZS, ISO 9001, CE, and CCC certifications, covering applicable quality, safety, and product compliance requirements.
These certifications reflect our established quality management system, controlled production processes, and commitment to standardized manufacturing. They also provide a reliable foundation for supplying customized glass products to customers across different markets and applications.
Will tempered glass affect touch sensitivity?
The glass itself does not determine touch sensitivity. Touch performance depends on the complete touch stack, including the sensor, cover-glass thickness, bonding method, controller, and device design. VATTI can manufacture the panel to the thickness and dimensional requirements established for your touch system.
Can the glass be used with capacitive touch sensors?
Yes. Tempered glass can be used as a cover glass for capacitive touch interfaces when the glass thickness and complete sensor stack are properly designed. The final touch performance should be verified with the actual sensor and bonding configuration.
Can you reproduce a replacement touch glass from an existing panel?
Yes. An existing glass panel can be used as a reference for developing a replacement specification. Dimensions, thickness, edge configuration, holes, printing, and other critical features can be measured and confirmed before production.
Can I test a sample before placing a bulk order?
Yes. Sample orders are available for design and assembly verification. For customized samples, the required processing and printing details should be confirmed in advance so the sample can represent the intended production configuration.
Can you support a glass specification for a new device that is still in development?
Yes. VATTI can review the available technical information during the design stage and help define the glass-related requirements for production, including dimensions, thickness, processing, printing, and surface treatment. Final specifications are confirmed against the customer’s approved design before manufacturing.
Whether you need a simple tempered touch panel or a fully processed glass cover with screen printing, precision openings, surface treatment, and custom geometry, VATTI can develop the glass around your device requirements.
Contact VATTI for a custom specification review and quotation.
