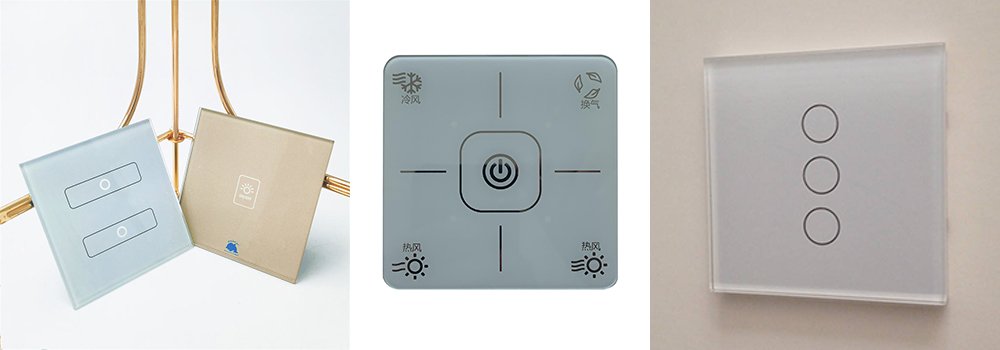

Switch Panel Glass is a tempered glass panel designed for touch switches, wall controls, smart home interfaces, and electronic control panels. It provides a durable, easy-to-clean front surface while allowing printed symbols, borders, logos, and functional markings to be integrated into the panel design.
The front surface of a touch switch needs to provide a consistent interface between the user and the underlying electronic control system. Switch Panel Glass provides a rigid, smooth glass surface that can be integrated with capacitive touch or other touch-sensing structures designed by the equipment manufacturer.
Unlike a mechanical switch surface, the glass panel has no mechanical button mechanism of its own. Instead, printed symbols, illuminated areas, icons, and other visual elements can define where users interact with the touch interface. For touch-sensitive applications, the glass can be processed with controlled thickness, dimensions, surface treatment, and printing arrangements to suit the requirements of the underlying assembly.

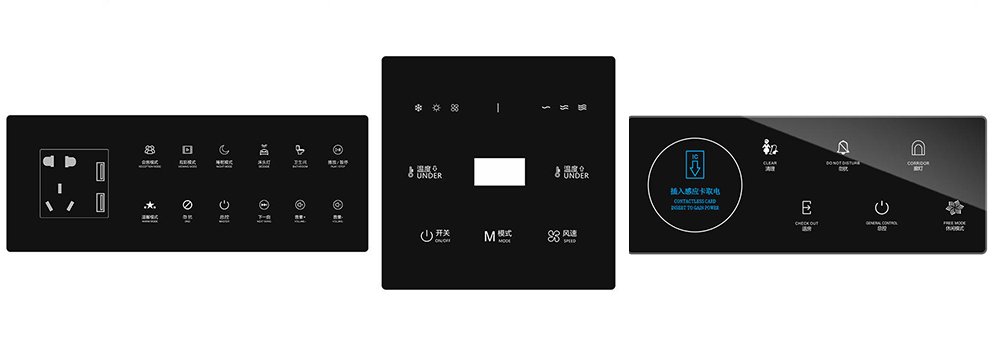

Screen printing allows functional information to be incorporated directly into the glass panel. Symbols, letters, numbers, borders, icons, logos, and other graphic elements can be printed according to the interface design.
Printing can also define active and inactive areas of the panel, helping users identify different switch functions without adding separate labels or components to the front surface.
Available printing options can include:
· Switch symbols and functional icons
· Letters, numbers, and operating marks
· Borders and decorative patterns
· Brand logos and identification graphics
· Printed areas for illuminated controls
· Multiple colors and graphic layouts
Ink selection and printing conditions are matched to the required glass processing route and application. Where regulatory requirements apply, suitable low-lead or lead-free printing systems can be specified according to the project requirements.
Switch panels are touched repeatedly during everyday operation, and fingerprints or skin oils can quickly build up on the exposed glass surface. For frequently used touch interfaces, maintaining a clean and clear front panel is therefore an important part of the overall glass design. A well-maintained surface also helps preserve the appearance of printed symbols, functional markings, and other visual elements integrated into the panel.
An anti-fingerprint (AF) coating creates a surface that is less receptive to fingerprints, oily residues, and smudges. This helps reduce visible marks during normal use and makes the glass easier to wipe clean during routine maintenance. The treatment is suitable for switch panels that require frequent handling while maintaining a clean, consistent surface appearance.
The overall geometry of the glass panel needs to follow the structure of the finished switch assembly. VATTI can produce switch panel glass in different lengths, widths, thicknesses, corner radii, and overall contours to match the housing and front-panel design.
The glass shape can be developed around the visual and structural layout of the switch, including rounded corners, curved outlines, asymmetrical profiles, and defined touch-control areas. Decorative borders and different functional zones can also be incorporated into the overall panel layout without adding separate front-facing components. This approach allows the glass to follow the intended appearance of the finished switch while maintaining the dimensional relationship required for assembly.
Beyond the overall panel shape, individual holes and cut-outs may be required for components positioned around or behind the glass. VATTI can machine these features according to the approved technical drawing, including mounting holes, sensor openings, slots, and other functional cut-outs.
Typical processing includes:
· Drilled holes
· Slots and cut-outs
· Countersunk holes
· Sensor openings
· Mounting openings
· Edge grinding
· Edge polishing
Hole dimensions, positions, and tolerances can be controlled according to the requirements of the mating components. Edge grinding and polishing can also be specified to achieve the required edge condition for handling, appearance, and assembly.
Tempered glass is widely used for switch panel applications where the front glass needs higher mechanical strength and improved safety performance. During thermal tempering, the glass is heated to a controlled temperature and rapidly cooled, creating compressive stress at the surface and balancing tensile stress within the glass. This process increases the glass's resistance to mechanical impact and thermal stress compared with annealed glass of the same thickness.
For touch switch panels, this added strength helps the glass withstand repeated contact, routine handling, cleaning, and everyday use. The rigid glass surface also provides a stable front panel for printed graphics and touch-control areas while maintaining the flat, solid feel expected from a glass interface.
Another important characteristic is its breakage behavior. When properly tempered glass breaks, it generally fragments into small pieces rather than producing the large, sharp shards typically associated with broken annealed glass. This makes tempered glass suitable for front panels that are handled frequently and where safety is an important consideration.

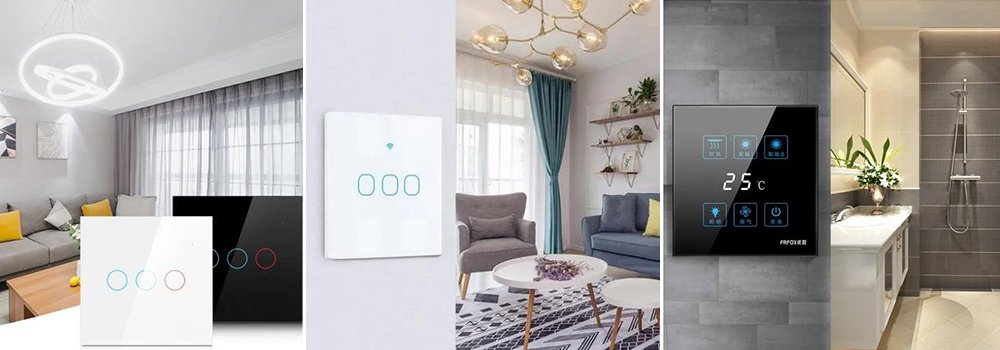

Switch Panel Glass can be used as the front glass component of various touch-operated control interfaces where a durable and visually integrated glass surface is required.
Typical applications include:
· Smart home touch switches
· Wall-mounted light switches
· Intelligent office controls
· Touch control panels
· Multifunction switch panels
· Remote-control interfaces
· Building automation controls
· Electronic appliance control panels
· Classroom and commercial control interfaces
For illuminated switch designs, printed graphics and transparent or defined display areas can be incorporated into the glass layout to work with the lighting and electronic structure behind the panel.
Item | Available Options / Considerations |
Glass Type | Tempered glass |
Application | Touch switches, control panels, smart home interfaces |
Glass Thickness | Produced according to panel and assembly requirements |
Shape | Rectangular, rounded, or CNC-shaped |
Edge Processing | Grinding, polishing, and other specified edge treatments |
Surface Treatment | AF, AR, AG, or untreated surface according to requirements |
Printing | Screen printing of symbols, text, borders, logos, and graphics |
Openings | Holes, slots, cut-outs, countersinks, and other machined features |
Processing | Precision cutting, CNC machining, drilling, printing, tempering |
Graphic Design | Single-color or multi-color printing according to approved artwork |
Safety Processing | Thermal tempering according to the selected glass specification |
Quality Requirements | Dimensional, visual, surface, processing, and tempering inspections |
Final specifications are confirmed according to the product drawing, assembly structure, surface treatment, printing requirements, and applicable quality standards.
Quality control for Switch Panel Glass covers both the glass itself and the processed features required for final assembly.
Finished panels can be inspected for dimensional accuracy, appearance, edge condition, printing quality, opening position, surface condition, and tempering performance.
Key inspection areas include:
· Overall dimensions and dimensional tolerances
· Glass thickness
· Edge grinding and polishing quality
· Hole and cut-out dimensions and positions
· Printing alignment and visual appearance
· Surface defects and contamination
· Flatness
· Tempered-glass particle performance
· Thermal shock performance where required
· Impact resistance according to applicable requirements
· Surface-treatment appearance and consistency
Inspection requirements can be established according to customer drawings, approved samples, technical specifications, and applicable standards.
Can Switch Panel Glass be used for capacitive touch switches?
Yes. Tempered glass panels can be used as the front glass surface of capacitive touch interfaces. The glass specification should be selected together with the touch-sensing structure to ensure compatibility with the finished assembly.
Can Switch Panel Glass be made in irregular shapes?
Yes. CNC processing can produce glass panels with shaped edges, rounded corners, and other irregular geometries. The design should be reviewed based on the glass dimensions, thickness, openings, and tempering requirements.
Can the printed area be designed around illuminated switch functions?
Yes. Printed graphics can be arranged with defined transparent or functional areas to work with lighting components behind the glass. The graphic layout should be coordinated with the light source and electronic structure of the finished switch panel.
Can you manufacture Switch Panel Glass from our drawings?
Yes. OEM/ODM production can be based on customer drawings, samples, dimensions, artwork, and technical requirements. The glass processing sequence can then be developed around the finished panel structure.
