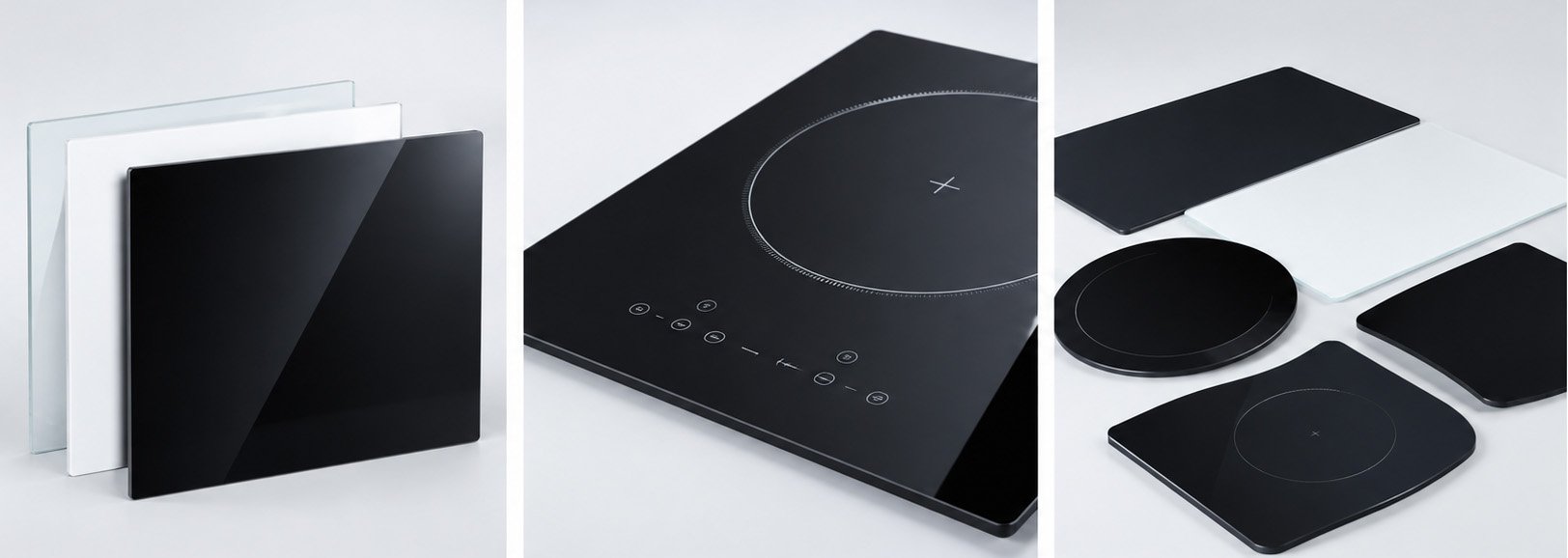

Microcrystalline glass ceramic cooktop panels for induction and electric cooktops. Available in 4mm and 6mm, with custom sizes, shapes, colors and surface printing.
Microcrystalline glass ceramic cooktop panels are specially designed for induction cookers, electric cooktops and other heating appliances requiring excellent thermal stability and reliable surface performance. Manufactured from advanced glass ceramic materials, these panels combine low thermal expansion, high temperature resistance, strong thermal shock resistance and good mechanical strength for long-term operation under repeated heating conditions.
Vatti Glass supplies 4mm and 6mm microcrystalline glass ceramic cooktop panels with customized sizes, shapes, colors and surface processing options. The panels are widely used in household appliances, commercial cooking equipment and OEM induction cooker projects that require durable and heat-resistant glass solutions.
| Item | Specification |
| Product Type | Microcrystalline glass ceramic cooktop panel |
| Material | Glass ceramic |
| Thickness | 4mm, 6mm |
| Color | Black, white, clear and customized |
| Density | Approx. 2.56 g/cm³ |
| Modulus of Elasticity | Approx. 93 × 10³ MPa |
| Bending Strength | Approx. 36 MPa |
| Shape | Round, square, rectangle and customized shapes |
| Standard Sizes | 590×520mm, 730×430mm, 900×520mm |
| Thermal Expansion Coefficient | α(20-700℃): (0 ± 0.5) × 10⁻⁷/K |
| Installation | Built-in |
| Application | Household and commercial appliances |
| Power Source | Electric, gas |
Excellent Thermal Stability
Microcrystalline glass ceramic cooktop panels feature an extremely low coefficient of thermal expansion, helping reduce internal stress caused by rapid temperature changes. This enables stable performance during frequent heating and cooling cycles in induction cooking applications.
Strong Thermal Shock Resistance
The ceramic glass cooktop panel is designed to withstand significant temperature differences between heated areas and cooler edges. Its excellent thermal shock resistance helps prevent cracking caused by sudden temperature changes during operation.
High Mechanical Strength
With good bending strength and impact resistance, the induction glass ceramic panel provides reliable protection for cooking appliances. The durable surface structure supports long-term daily use while maintaining a smooth appearance.
Chemical Resistance and Easy Maintenance
The smooth glass ceramic surface provides good chemical stability and resistance to common household stains, making the panel easy to clean and maintain after cooking.
Customized Sizes and Shapes
Different appliance designs require different panel dimensions. Vatti Glass supports customized round, square, rectangular and special-shaped ceramic glass cooktop panels according to customer drawings and project requirements.
Surface Printing Options
The panels support screen printing processes for customized patterns, logos and functional markings. Printing materials comply with RoHS requirements to meet different appliance design standards.
Flexible Thickness Selection
Available thickness options include 4mm and 6mm, allowing customers to select suitable glass ceramic panels according to appliance structure and performance requirements.
Induction Cooker Glass Panel
Microcrystalline glass ceramic cooktop panels are widely used as the top surface of induction cookers, providing a heat-resistant and durable cooking platform
Electric Cooktops and Built-in Appliances
The panels are suitable for built-in electric cooktops and combined gas-electric cooking systems requiring stable heat-resistant surfaces.
Commercial Kitchen Equipment
Customized ceramic glass cooktop panels can be integrated into commercial cooking equipment where durability, appearance and thermal performance are required.

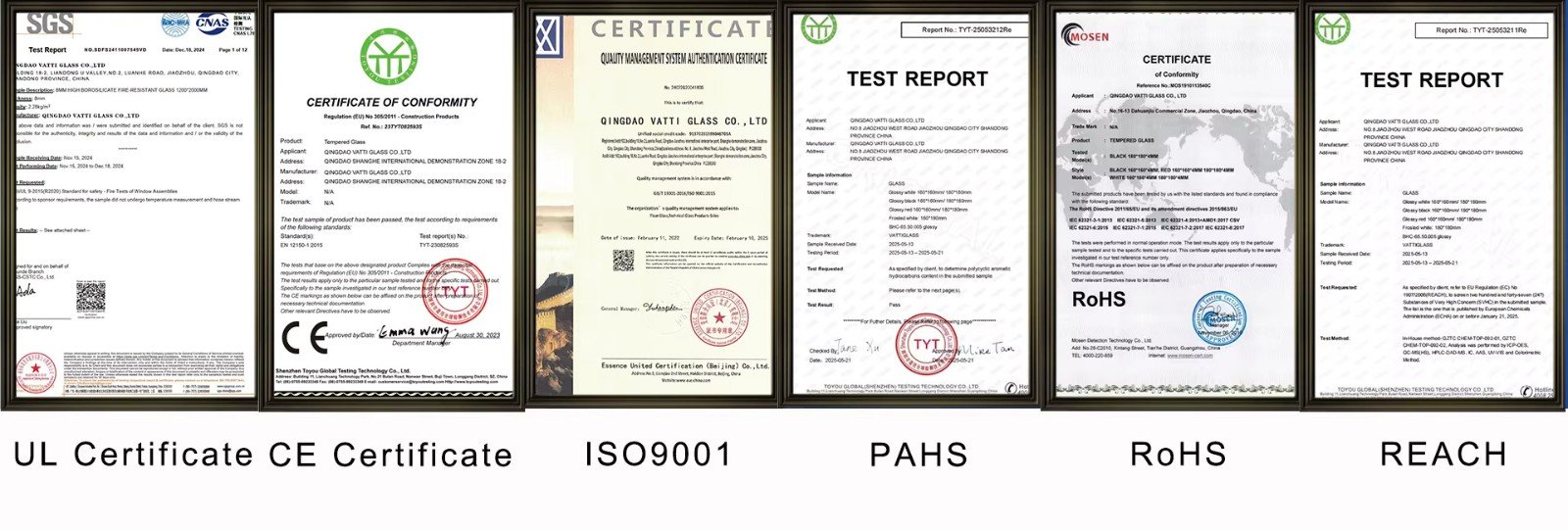

Vatti Glass follows strict quality management procedures and has passed internationally recognized certifications, including ISO9001, CE, SII, SGS and RoHS certifications.
These certifications demonstrate our commitment to consistent product quality, reliable manufacturing processes and compliance with international market requirements. Our quality control system covers raw material inspection, production monitoring, dimensional accuracy checks and final product inspection to ensure stable quality for every glass ceramic cooktop panel.
Thermal Difference Resistance
The panel is tested for resistance against thermal stress caused by temperature differences between heated zones and cooler edges. The maximum tested temperature difference resistance reaches up to 760℃.
Thermal Shock Resistance
The glass ceramic panel maintains structural integrity when a hot surface at 760℃ is rapidly quenched with 20℃ cold water under specified testing conditions.
Impact Resistance
A steel ball impact test is performed using a 60mm diameter steel ball weighing 188g dropped from a height of 180mm. The panel shows no scratching or cracking after repeated impacts.
· Professional glass manufacturing and exporting experience
· Stable quality control system for global markets
· Customized processing capabilities for OEM projects
· Multiple thickness, size and shape options
· Reliable export packaging solutions
· Convenient logistics support from Qingdao port
Samples and small orders can be shipped by DHL, TNT, FedEx, EMS and UPS. Delivery usually takes approximately 7-10 working days after payment confirmation.
For bulk orders, products can be shipped by sea or railway according to customer requirements.
What is the difference between glass ceramic and ordinary glass for induction cooktops?
Glass ceramic is specifically engineered for high-temperature heating applications. Compared with ordinary glass, it has a much lower thermal expansion coefficient and better resistance to thermal shock, allowing it to withstand rapid heating, cooling cycles and concentrated heat zones generated by induction systems.
For induction cooktops, glass ceramic provides better long-term stability, surface durability and safety performance than conventional glass materials.
How do you ensure the quality consistency of microcrystalline glass ceramic cooktop panels?
Vatti Glass applies quality control throughout the manufacturing process, including raw material inspection, cutting accuracy control, surface inspection, dimensional checking and final product verification.
Each glass ceramic cooktop panel is produced according to customer specifications to ensure consistent performance for appliance assembly.
Can you manufacture customized glass ceramic cooktop panels based on drawings?
Yes. Vatti Glass supports customized production based on customer drawings, including dimensions, shapes, thicknesses, colors and surface printing requirements.
We provide OEM solutions for appliance manufacturers that need specific glass ceramic panels for different induction cooker designs.
What thickness of ceramic glass panel is suitable for induction cookers?
4mm and 6mm are commonly used thickness options for induction cooker glass ceramic panels. The suitable thickness depends on the appliance structure, heating power, installation design and required mechanical strength.
Vatti Glass can recommend suitable specifications according to customer application requirements.
What processing services can be provided for induction glass ceramic panels?
Vatti Glass provides multiple processing options, including precision cutting, edge grinding, polishing, CNC machining, drilling and screen printing.
These processes allow customers to integrate the glass panel into different appliance structures and product designs.
What information should customers provide when requesting a quotation?
To provide an accurate quotation, customers can share product drawings, required dimensions, thickness, quantity, application details and any surface processing requirements.
Our team will evaluate the specifications and provide a suitable production solution.
Can Vatti Glass provide samples before bulk production?
Yes. Sample orders are available for product evaluation and design verification before mass production. Samples and small orders can be shipped through international express services.
