Combining mechanical strength, surface durability, optical clarity, and customizable printing, Card Reader Glass provides a reliable interface between the user and the electronic components inside the device. Its compact design is particularly suitable for equipment that requires a thin, durable, and precisely processed glass panel.

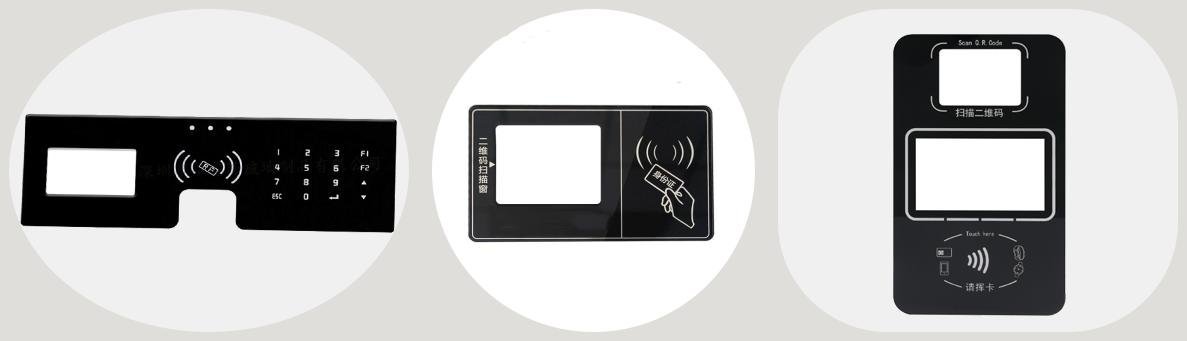

Card Reader Glass is a custom-processed glass panel used as the external interface or protective cover of card reading and identification equipment. It is typically manufactured from tempered glass and can be further processed through CNC cutting, edge finishing, drilling, corner shaping, and screen printing.
Unlike a general-purpose glass cover, Card Reader Glass is manufactured according to the dimensions and functional requirements of the reader. The glass can be designed around display windows, touch areas, indicator lights, sensor locations, mounting features, and other structural requirements.
The glass panel is one of the most frequently exposed parts of a card reader. Users may touch, swipe, clean, or interact with the surface repeatedly throughout the product’s service life. For equipment installed in public or commercial environments, the glass must therefore provide more than visual protection.
Protection Against Daily Surface Wear
Tempered glass provides higher mechanical strength than ordinary annealed glass and is suitable for applications where the panel may experience repeated contact and everyday handling.
A properly specified glass surface can help resist common forms of surface wear, while optional surface treatments can improve resistance to fingerprints and make routine cleaning easier.
Safety Through Tempered Glass Processing
When properly manufactured and heat-treated, tempered glass has greater resistance to mechanical and thermal stresses than annealed glass
If tempered glass breaks, it generally fractures into many smaller particles rather than large, sharp shards typical of ordinary annealed glass. However, no glass should be described as completely unbreakable, and the appropriate glass specification depends on the application’s impact and safety requirements.
Thin Design for Compact Equipment
Card readers often have limited installation space. Glass thickness can therefore be optimized according to the device housing, support structure, installation method, and required mechanical performance.
A thinner glass configuration can help maintain a compact product design while still providing the required protection, provided that the selected thickness is validated for the application.
Compatibility With Device Functions
Card Reader Glass must be designed together with the electronic components behind it. Glass thickness, coatings, printing, openings, and surface treatments may need to be considered when the panel is positioned over touchscreens, optical sensors, NFC/RFID antennas, displays, or other functional areas.
For this reason, functional testing should be carried out on the complete device rather than assuming that every glass configuration will perform identically.

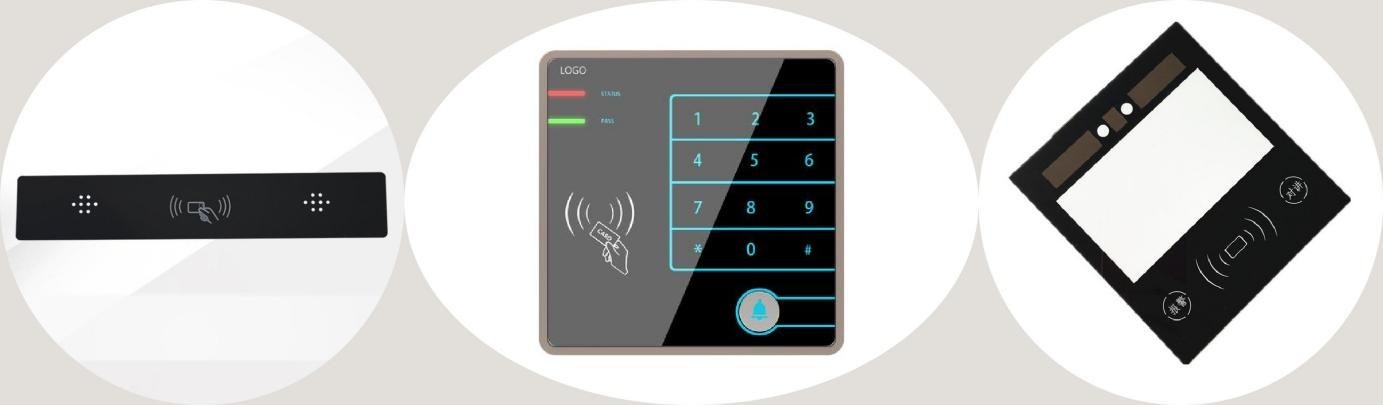

Different card-reading devices have different glass requirements. VATTI can manufacture customized glass panels according to the equipment structure and application environment.
Payment Terminals
Payment terminals require a durable interface that can withstand frequent user interaction while maintaining clear visibility of displays, touch areas, and functional markings.
POS Terminals
For POS equipment, glass may combine a display cover, touch interface, decorative border, and printed branding elements within a single customized panel.
NFC & RFID Readers
NFC and RFID devices require careful consideration of the relationship between the glass panel and the reader antenna or sensing components. Glass thickness, coatings, printing materials, and the overall device construction should be evaluated during development.
Self-Service Devices
Self-service kiosks and smart terminals can use customized glass panels for touchscreens, displays, card-reading interfaces, and decorative surfaces.
The surface of Card Reader Glass directly affects how users see and interact with the device. Different environments may require different optical and surface treatments.
Clear Surface
Clear glass is suitable where high transparency and display visibility are important. It can provide a clean interface between the user and the screen or electronic display.
Anti-Fingerprint Treatment
Anti-fingerprint treatment can reduce the visibility of fingerprints and make the surface easier to maintain, which is particularly useful for frequently touched equipment.
Anti-Glare Surface
Anti-glare treatment can help reduce distracting reflections under strong ambient lighting. It may be useful for outdoor equipment, transportation systems, and brightly lit commercial environments.
Anti-Reflective Options
Anti-reflective treatment can be considered when reducing surface reflections and improving display readability is an important design requirement.
Screen Printing
Screen printing can be used to create:
· Black or colored borders
· Logos
· Icons
· Symbols
· Functional markings
· Decorative patterns
· Custom graphic elements
The printing design can be developed according to customer artwork and product requirements. Ink selection and processing conditions should be matched to the required durability and application environment.
Custom Card Reader Glass typically starts with the equipment design rather than a standard glass size. Providing a drawing, dimensions, sample, or other technical reference allows the glass configuration to be evaluated before production.
1. Drawing & Requirement Review
Customers can provide CAD drawings, dimensions, samples, or technical specifications. Key requirements such as thickness, tolerances, holes, corners, printing, and surface treatment can then be reviewed.
2. Glass Configuration
The appropriate glass type, thickness, color, surface treatment, and processing requirements are confirmed according to the device design.
3. Precision Cutting & Processing
The glass is cut to the required dimensions and processed through suitable methods such as CNC shaping, drilling, edge finishing, and corner processing.
4. Screen Printing
Where required, customized logos, borders, symbols, or other graphics are applied through screen printing.
5. Tempering
The glass can undergo thermal tempering to improve its mechanical strength and safety characteristics, subject to the specified glass configuration.
6. Inspection
Finished panels are inspected for dimensions, appearance, surface condition, edge quality, printing accuracy, and other agreed requirements.
7. Packaging & Shipment
The finished glass is individually protected and packed using packaging suitable for international transportation.
For Card Reader Glass, dimensional and surface consistency are particularly important because the panel must fit accurately into the reader housing and maintain a clean user interface.
Our inspection process can include:
Dimensional Inspection
Checking length, width, thickness, hole positions, corner dimensions, and other critical dimensions against approved drawings or specifications.
Appearance Inspection
Checking the glass surface for visible defects such as scratches, chips, stains, contamination, and other appearance issues.
Printing Inspection
Checking logo position, border dimensions, pattern clarity, color consistency, and printing adhesion according to the agreed requirements.
For customized projects, inspection criteria can be agreed with the customer before mass production.
Item | Specification |
Product | Card Reader Glass |
Glass Type | Tempered Glass |
Size | Customized according to customer requirements |
Color | Black, White, Dark Gray, Light Gray, Others |
Printing | Custom screen printing |
Logo | Custom logo printing available |
Corner | Round, flat, cut, customized |
Edge | Fine polished edge / Rough edge according to requirements |
Surface Treatment | Anti-fingerprint, anti-reflective, anti-glare |
Shape | Standard or customized |
Holes / Cutouts | Customized |
Application | Card readers, payment terminals, access control, POS and smart devices |
Certification | CCC / ISO9001 / CE |
Technical parameters such as thickness, dimensional tolerance, glass configuration, printing specifications, and surface treatment can be confirmed according to the specific project requirements.
Proper packaging is essential for protecting processed glass panels during storage and international transportation.
Card Reader Glass can be packaged using different protective solutions according to order quantity, panel dimensions, transportation method, and customer requirements.
Standard Packaging Options
· Carton packing with protective foam
· Plywood crates
· Seaworthy wooden crates
· Customized protective packaging
Glass panels can be separated with suitable protective materials to reduce direct contact between individual pieces. For export orders, packaging can be selected according to the transportation route and handling requirements.
What information do you need to quote Card Reader Glass?
Please provide a drawing, sample, dimensions, required thickness, quantity, application, and any printing or surface treatment requirements. If some details are not confirmed, we can help review the available information and identify the specifications that still need to be defined.
Can you match the glass to an existing card reader housing?
Yes. We can manufacture the glass according to the existing housing, including its opening size, corner radius, mounting area, holes, notches, and visible display or sensor zones. A sample or technical drawing is recommended for accurate matching.
How do I know whether the glass will affect card reading or sensor performance?
The glass should be evaluated together with the complete device. Factors such as thickness, coatings, printed areas, antenna position, sensor type, and the distance between the glass and electronic components may affect performance. We recommend testing a sample in the actual reader assembly before mass production.
Will screen printing cover the display, sensor, or card-reading area?
The printed design can be positioned around functional areas according to the approved drawing. Display windows, sensor zones, indicator lights, and card-reading areas should be clearly identified during the design stage to avoid interference with device operation.
Can you reproduce an existing glass panel?
In many cases, yes. We can review an existing panel or sample and assess its dimensions, thickness, edge finish, printing, holes, and surface treatment. A physical sample is useful when the original drawing or specification is unavailable.
How should I clean the glass after installation?
Use a soft, lint-free cloth with a suitable glass cleaner or mild cleaning solution. Avoid abrasive pads, sharp tools, and aggressive chemicals that may damage the surface treatment or printed areas. For public-use equipment, the cleaning method should also be checked against the device manufacturer’s maintenance requirements.
What happens if the glass arrives damaged?
Please photograph the outer packaging and the damaged panels, keep the packaging materials, and contact us as soon as possible with the order information. This helps us review the transportation condition and determine the appropriate solution.
Can you help select the glass thickness?
Yes. We can recommend a starting configuration based on the panel size, support structure, installation method, expected contact or impact, and device environment. Final thickness should be confirmed through sample evaluation or testing on the complete equipment.
Have a Card Reader Glass Project?
Send us your drawing, dimensions, sample, or product requirements.
Our team can review the required glass configuration, dimensions, processing details, printing design, surface treatment, and other project requirements to help develop a Card Reader Glass solution suitable for your device.
Request a Custom Glass Solution →
